J3– Through Hole—O2 Active Low Alarms
Pin: (Square pad) 5V Regulated DC Power Supply (+) O2 < 90% O2 < 86% O2 < 85% O2 < 83% O2 < 82% 85% > O2 > 73% O2 < 73% O2 < 70% |
|

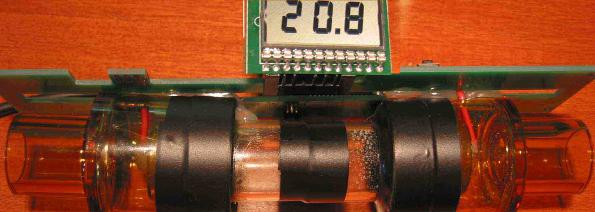

Specifications:
|
|
Dimensions |
6.5” x 1.5” x 1.5” / 86g |
|
Outputs |
RS-232, SPI, LCD, Analog 0 to 5V (100% O2, 500 L/min) |
|
Power Supply |
Regulated 5V DC / 2 ma |
|
Analog Outputs |
0 to 5V DC Linearly proportional to 0-100% O2; 0—500 L/min Flow |
|
LCD Display |
|
|
Response Time |
0.01 seconds |
|
O2 Accuracy |
±1.8% |
|
Flow Accuracy |
±2 L/min |
|
O2 Range |
20.8% - 100% |
|
Calibration Retention |
More than 10 years |
|
Flow Rate Range |
0 - 500 L/min |
|
Max pressure |
10 psig |
|
Temperature Range |
10 to 45°C |
|
Alarm |
No Flow Alarm |
|
Temperature Response |
1 oC/min |
|
Calibration |
Factory. Does not need recalibration |
|
Flow Direction |
Unidirectional |
|
Long term display & save |
Via DigiTEST |
|
Converting to other units of flow |
How to convert Volumetric Flow to other units of Flow Rate, such as gal/min, SLPM |
